Installing Samourai Dojo
Cover

Part 4. Installing Samourai Dojo

December 20, 2023

Prerequisites.

Completed “Dojo Node Guide,” Parts 1, 2, 3.

Introduction #

Dojo is a software tool that enhances the privacy and security of Samourai Wallet users. The Dojo software is a personally hosted full-node server backend that Samourai Wallet users can connect to, enhancing privacy by eliminating the need to connect with a public server/node.

Running a Dojo server is essential for those wanting to utilize the privacy benefits achieved through Samourai Wallet’s post-mix spending tools and powerful Whirlpool CoinJoin implementation.

Create Dojo User #

Creating a segregated user account for Dojo is beneficial for security.

sudo useradd -s /bin/bash -d /home/dojo -m -G sudo dojo

Set a password for your new user.

sudo passwd dojo

Provide the user “dojo” with the required permissions.

sudo usermod -aG docker dojo

Restart the device.

sudo reboot

Once the system has successfully rebooted, SSH back in as user “dojo.”

Download Dojo #

Download the latest version of Dojo from the official Samourai repository.

torsocks wget https://code.samourai.io/dojo/samourai-dojo/-/archive/master/samourai-dojo-master.zip

Unzip the downloaded archive.

unzip samourai-dojo-master.zip

Create a directory for Dojo.

mkdir ~/dojo-app

Move the unpackaged files to the new directory.

mv ~/samourai-dojo-master/* ~/dojo-app/

Remove the empty archive & folder.

rm -r samourai-dojo-master && rm samourai-dojo-master.zip

Configure Dojo #

Multiple configuration files need to be modified before initializing Dojo.

cd ~/dojo-app/docker/my-dojo/conf/

Open “bitcoind.conf”.

nano docker-bitcoind.conf.tpl

Edit as follows.

####edit to your core rpc username & password
BITCOIND_RPC_USER=dojorpc
BITCOIND_RPC_PASSWORD=dojorpcpassword
####change
BITCOIND_INSTALL=on

##to
BITCOIND_INSTALL=off
####edit to your nodes IP
BITCOIND_IP=172.28.1.5
####change
BITCOIND_RPC_PORT=28256

##to
BITCOIND_RPC_PORT=8332
####change
BITCOIND_ZMQ_RAWTXS=9501

##to
BITCOIND_ZMQ_RAWTXS=28333
####change
BITCOIND_ZMQ_BLK_HASH=9502

##to
BITCOIND_ZMQ_BLK_HASH=28334

Save and exit the file.

Open “indexer.conf”.

nano docker-indexer.conf.tpl

Edit as follows.

####change
INDEXER_TYPE=addrindexrs

##to
INDEXER_TYPE=fulcrum
####edit to your nodes IP
INDEXER_IP=172.28.1.6
####change
INDEXER_RPC_PORT=50001

##to
INDEXER_RPC_PORT=50002
####change
INDEXER_BATCH_SUPPORT=inactive

##to
INDEXER_BATCH_SUPPORT=active
####change
INDEXER_PROTOCOL=tcp

##to
INDEXER_PROTOCOL=tls

Save and exit the file.

Open “mysql.conf.”

nano docker-mysql.conf.tpl

Create root and user passwords for MySQL, then edit the file.

####edit lines with passwords
MYSQL_ROOT_PASSWORD=rootpassword
MYSQL_PASSWORD=password

Save and exit the file.

Open “node.conf.”

nano docker-node.conf.tpl

Create “API,” “admin,” and “JWT” passwords, then edit the file as follows.

####add passwords here
NODE_API_KEY=myApiKey
NODE_ADMIN_KEY=myAdminKey
NODE_JWT_SECRET=myJwtSecret
####change
NODE_ACTIVE_INDEXER=local_bitcoind

##to
NODE_ACTIVE_INDEXER=local_indexer
####optional - add paynym address if enabaling auth47
NODE_PAYMENT_CODE=

Save and exit the file.

There’s also the option to disable the default Bitcoin RPC Explorer. This is optional, but with an already active Mempool installation, it may not have a use case for some.

Skip this next step if wanting to leave RPC Explorer enabled.

Open “explorer.conf.”

nano docker-explorer.conf.tpl

Edit the file as follows to disable RPC Explorer.

####change
EXPLORER_INSTALL=on

##to
EXPLORER_INSTALL=off

Save and exit the file.

Dojo Initialisation #

Enter the Dojo install script directory.

cd ~/dojo-app/docker/my-dojo

Run the script.

./dojo.sh install

Dojo will begin the installation process.

The installation is complete once a constant stream of “node.js” logs appears. Exit the logs with “control+c “.

Dojo Maintenance Tool #

The Dojo Maintenance Tool, or “DMT,” is accessible only via Tor. The server’s dedicated onion address can be requested with the following command.

./dojo.sh onion

The DMT can be accessed via this onion address and logged into using either the “admin key” previously created or “Auth47” if previously configured.

Once a full house of green ticks shows on the dashboard, Dojo is synched and ready to pair with a Samourai Wallet.

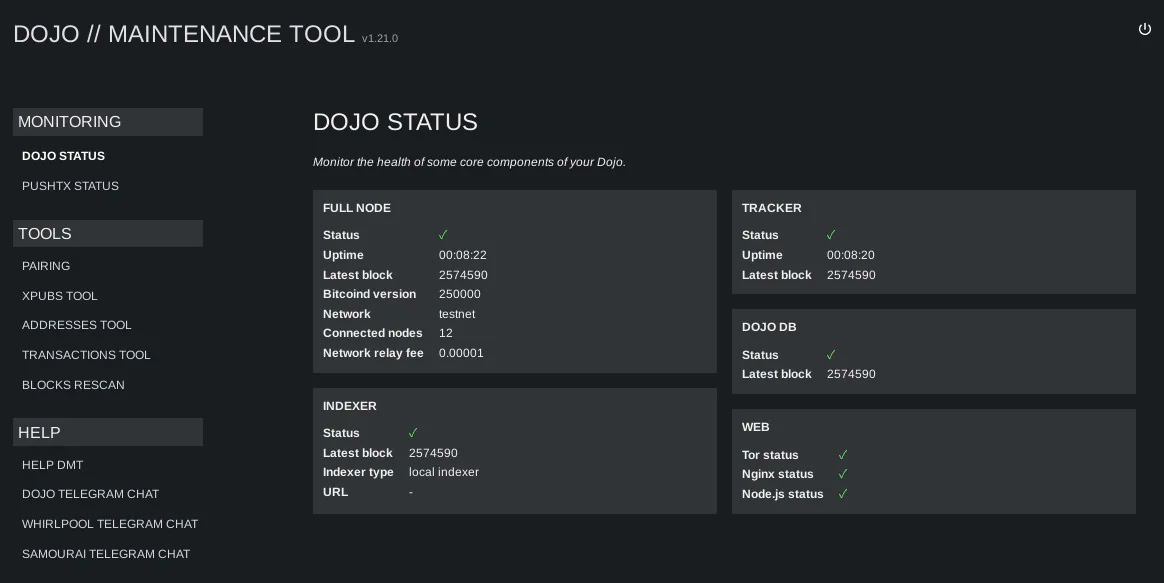

DMT in Testnet

Select “pairing” from the DMT’s menu to display the pairing QR code that can be scanned during the setup process of creating or restoring a Samourai Wallet.

If the RPC explorer is not disabled, two QR codes will be displayed. The Dojo pairing QR is the one to the left.
